Zotac ZBOX Nano AD10 Mini PC Review

We have seen quite a few different Mini PC’s lately.  They make great Internet surfing and media machines for home theater setups.  Not that long ago we took a look at Zotac’s ZBOX HD-AD02 mini PC, which proved to be a great and very function mini PC, but was a little on the large side.  Today we have the ZBOX Nano AD10, which has to be one of the best-looking and smallest mini pc’s we have looked at.  I know you are going to say it so we will say it now, it looks like a Mac Mini only smaller!  Inside this small design you have an AMD E350 CPU, AMD Radeon HD 6310 graphics, 2GB of DDR3 and a 320GB hard drive.  Let’s check out the ZBOX Nano and see if performs as well as it looks!

Special thanks to Zotac for providing us with the ZBOX Nano AD10 Mini PC to review.

Specifications

Model

ZBOXNANO-AD10-PLUS-U

Chipset

AMD M1 Chipset

CPU Socket

N/A (Integrated CPU)

Cooler Type

Fan (Single Slot)

Onboard Video

AMD Radeon™ HD 6310

Onboard Audio

Onboard analog stereo high-definition audio/7.1-Channel LPCM digital audio (HDMI)/Optical Digital S/PDIF audio

Onboard LAN

10/100/1000Mbps, Wifi 802.11n/g/b (300Mbps), Bluetooth 3.0

Memory Size

2GB

Memory Slots

1 x 204-pin SO-DIMM

Memory Type

DDR3 1066 SO-DIMM

SATA

1 SATA (6.0 Gbps), 1 eSATA

Hard Drive

N/A

Video Ports

HDMI, DisplayPort

Front Ports

N/A

Rear Ports

N/A

Top Ports

N/A

USB

2 x USB 3.0 (back panel) 2 x USB 2.0 (back panel)

Power Connector

DC19V

Extra Features

N/A

Package Contents

1 x ZOTAC ZBOX nano AD10

1 x Power brick & cable

1 x VESA monitor mount (w/4 screws)

1 x MCE compatible remote w/ 2 CR2032 batteries

1 x USB IR receiver

1 x WiFi antenna

Dimensions

5in x 5in x 1.77in – 127mm x 127mm x 45mm

Warranty

1-Year Standard

Packaging

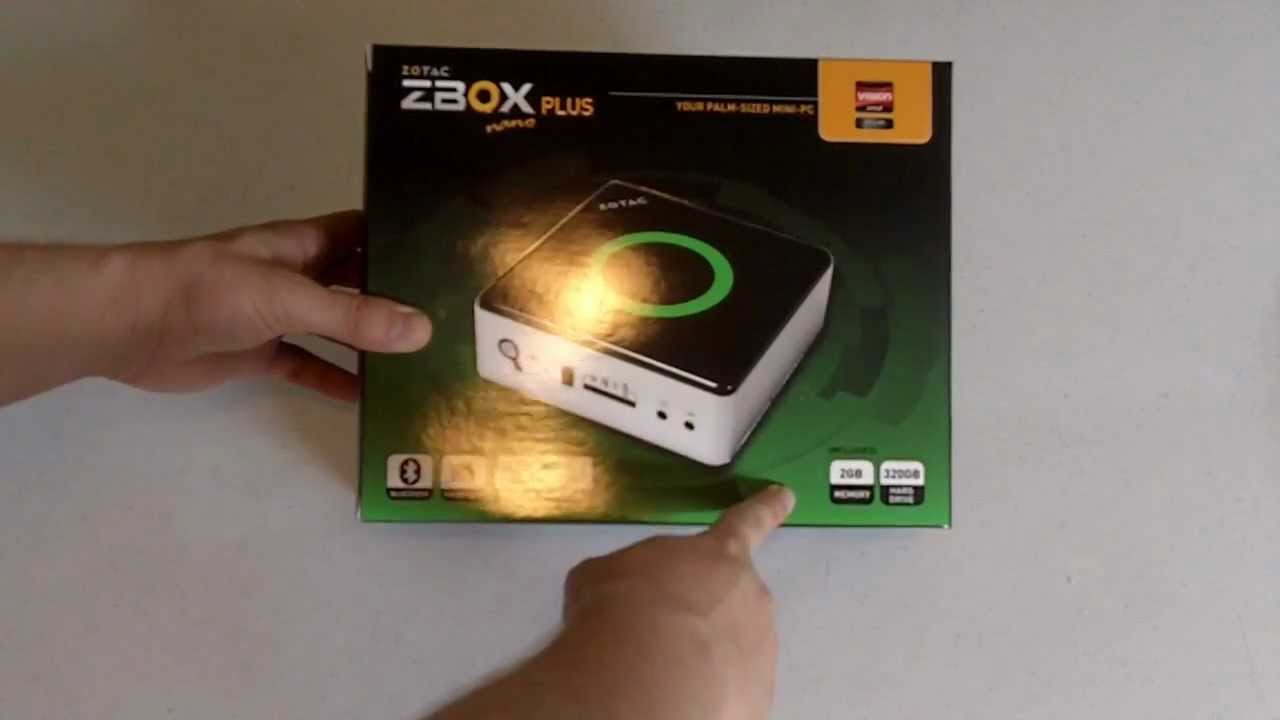

The ZBOX Nano comes in a nice retail box.  On the front there is a photo of the unit and some information.  On the back there is even more information on the unit and 2 full-sized front and back shots to really show you how small the device is.  On the side you have all of the specs and what comes inside the box.

Zotac ZBOX Nano AD10 Mini PC Zotac ZBOX Nano AD10 Mini PC Zotac ZBOX Nano AD10 Mini PC

To really give you a good idea of how the system comes and what is all inside check out our unboxing and overview video.
