ZOTAC GeForce GTX 770 Extreme Edition Detailed

Many people may think that Zotac’s AMP! cards are their highest offerings, but their Extreme Edition’s are actually the best. They have just launched their GeForce GTX 770 Extreme Edition graphics card in the greater China region. This card features a strong VRM, an updated Gamer Force cooler with higher aluminum fin desnsity for the GPU, a larger metal heatsink for the VRM and a back-plate to cool components on the other side of the card.

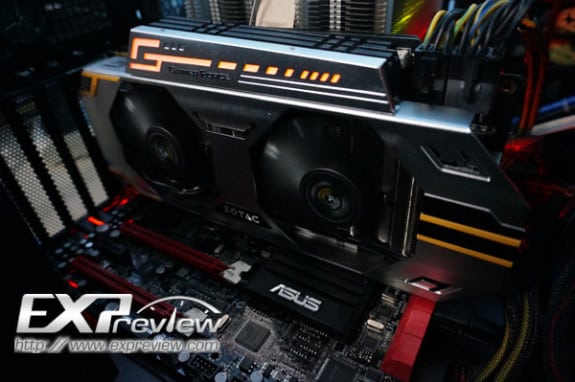

ZOTAC GeForce GTX 770 Extreme Edition

ZOTAC GeForce GTX 770 Extreme Edition Detailed

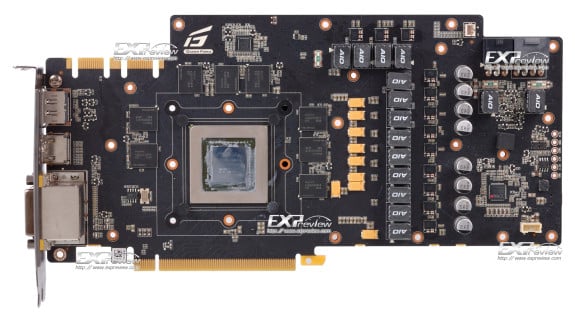

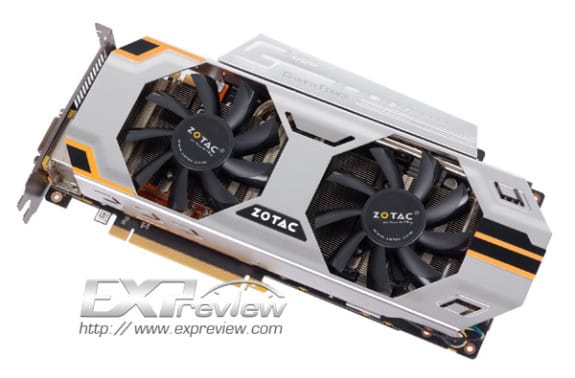

The Zotac GeForce GTX 770 Extreme Edition features a 12-phase (8+3+1) VRM design that makes use of noise-free chokes, conductive polymer and tantalum capacitors, three proadlizers (multi-phase capacitors), and International Rectifier PowIRstage driver-MOSFETs. The GPU heatsink uses a copper base to make direct contact with the GPU and features five 8 mm thick nickel-plated copper heatpipes that extend out into the heatsink. Two 92mm fans cool off the heatsink and the card has an aluminum shroud.

ZOTAC GeForce GTX 770 Extreme Edition

The card has clock speeds of 1150 MHZ core, 1202 MHZ boost and 7.20 GHz memory (effective). The beefy cooler can handle these overclocked speeds. There is a dip-switch that allows you to enable LN2-friends OTP mode, which will disable NVIDIA’s limits and enable you to overclock the card even higher.

ZOTAC GeForce GTX 770 Extreme Edition

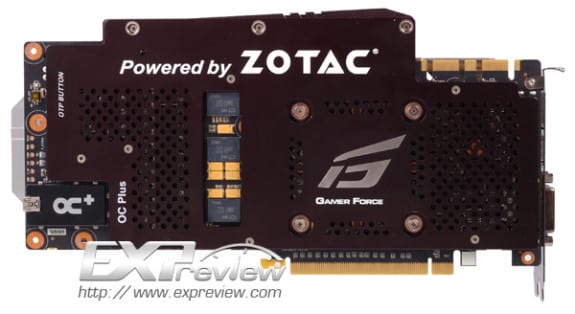

Finally there is OC+ module support that is a internal USB connection to a device with buttons on it that allows you to control clock speeds, fan speeds and voltages. Right next to the OC+ port are voltage measurement points.

ZOTAC GeForce GTX 770 Extreme Edition
