Zotac GeForce GTX 1070 Ti AMP! Edition Graphics Card Overview

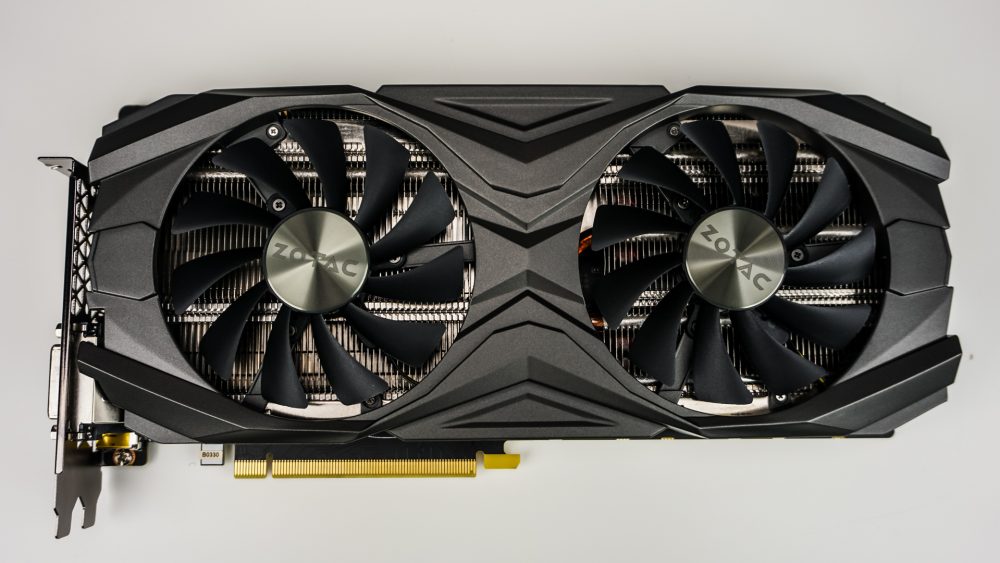

If you are familiar with Zotac graphics cards the GeForce GTX 1070 Ti AMP! Edition looks much like many other Zotac graphics cards. The card is characterized by a gunmetal-colored shroud with two large cooling fans. This is Zotac’s IceStorm cooling solution, which they have been using for a while now. It features two aluminum heatsink stacks, with heatpipes that make direct contact with your GPU.

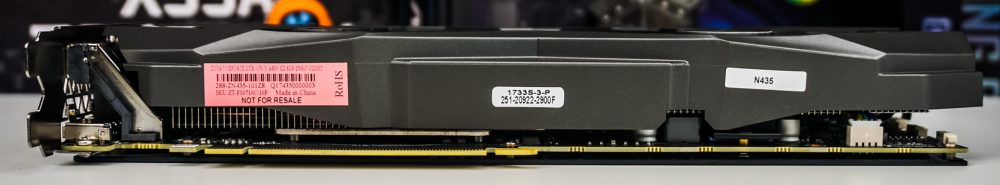

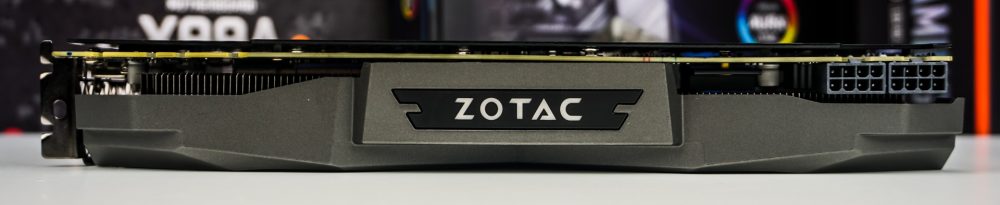

Like most graphics card this is a dual-slot card. For those wondering about dimensions the official dimensions are 300mm x 148mm x 43.5mm (11.8in x 5.83in x 1.71in). On the side of the card which will point out of your side panel window there is a large Zotac logo. This logo features Zotac’s SPECTRA lighting, which allows you to choose any color you want. The card draws power from dual 8-pin PCI-Express power connectors.

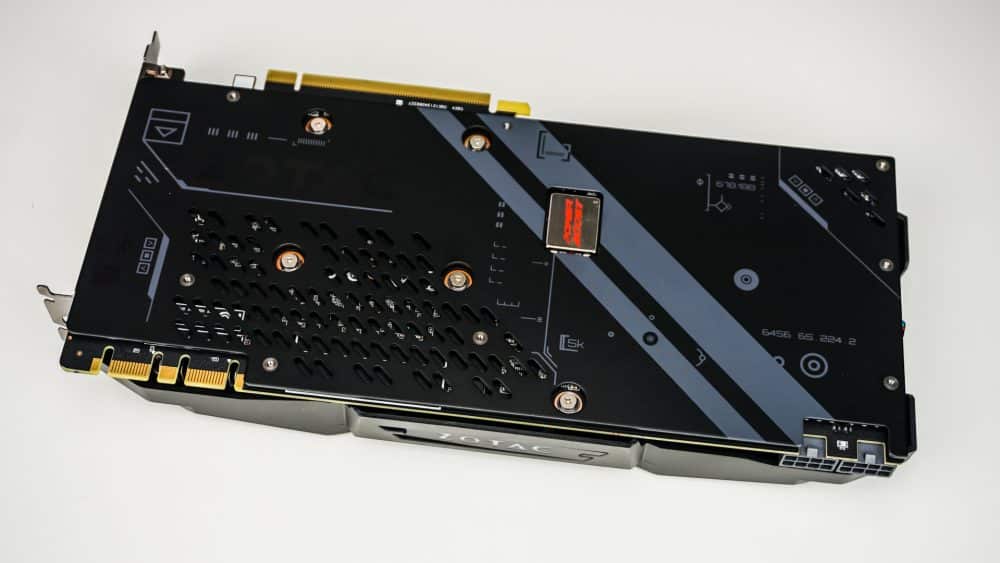

Checking out the back of the card there is a full metal backplate. This not only will help with cooling, but will give the card better stability. The backplate has a large Zotac logo on it and some cool designs. You’ll notice the Power Boost chick on the back. Power Boost is a control chip that provides live electrical current regulation and instant electrical deviation responses. It reduces ripple noise and minimizes power fluctuations.

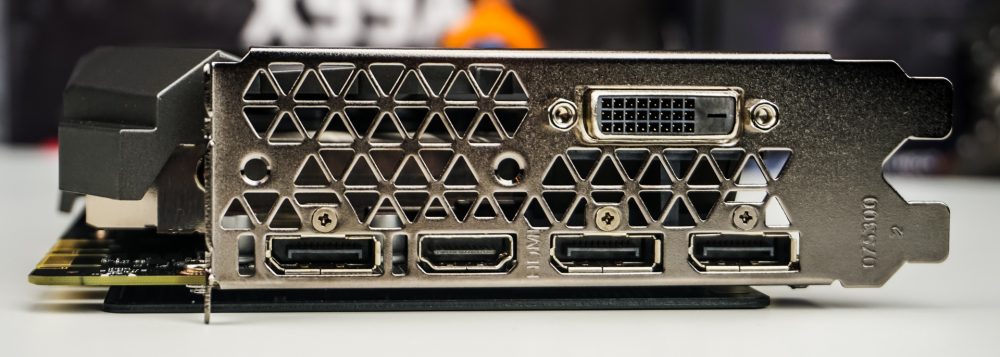

As far as display outputs you have three DisplayPort 1.4 ports, a single HDMI 2.0b, and a single DVI-D port.
