Zotac GeForce GTX 1050 Ti OC Edition Graphics Card Review

4K Game Testing
Our final set of game benchmarks will be run and tested at 4K (3840 x 2160) resolution. All scores here are the average FPS (frames per second) recorded.

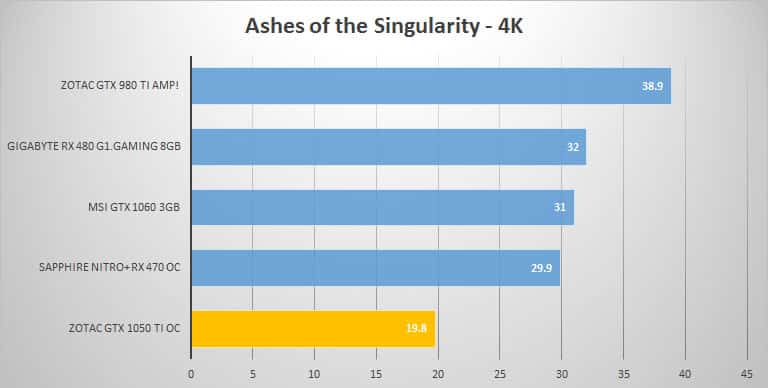

Ashes of The Singularity
We are running the DirectX 12 version of the game. Using the “Extreme” quality profile we ran the game’s built-in benchmark.

ashes-4k

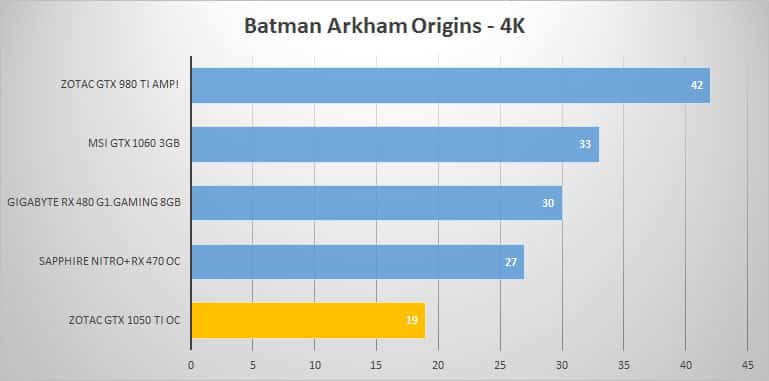

Batman Arkham Origins
In Batman Arkham Origins all of the detail settings were set to DX11 Enhanced, all features were turned on, Anti-Aliasing was set at MSAA 8X, and Hardware Accelerated Physx was turned off. We used the games built in benchmark.

batman-4k

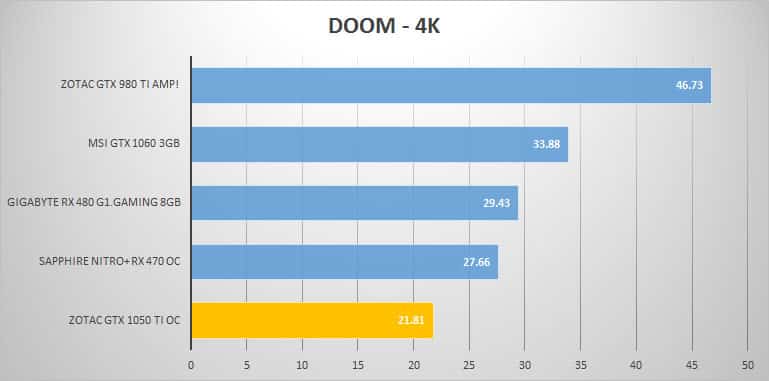

DOOM
We used OpenGL 4.5 to render the game. We used the “Ultra” preset except for changing “Decal Filtering” from Anisotropic 8x to Anisotropic 16x. We used the first mission of the game where you enter the main room. Using FRAPS to record a 60 second run we enter the room to the left and do laps in that direction going the same way each time.

doom-4k

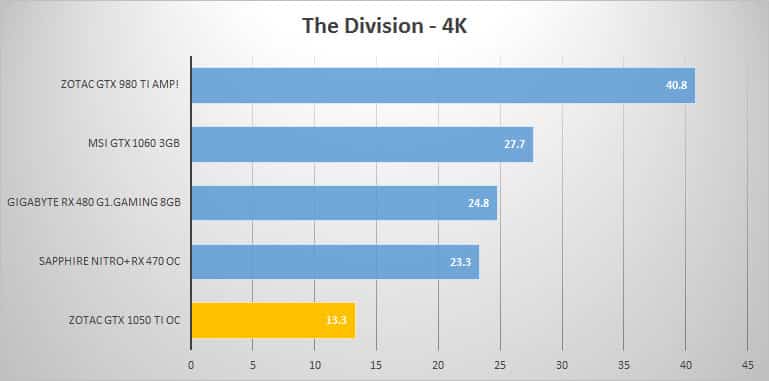

The Division
In The Division we used the “Ultra” preset, but we made sure to turn V-sync mode off. The game has its own built-in benchmark, which we ran.

thediv-4k

Grand Theft Auto V
We used the games built in benchmark here. All of the settings were maxed out except MSAA was turned off. Also everything in the “Advanced Graphics” section was turned off.

gtav-4k

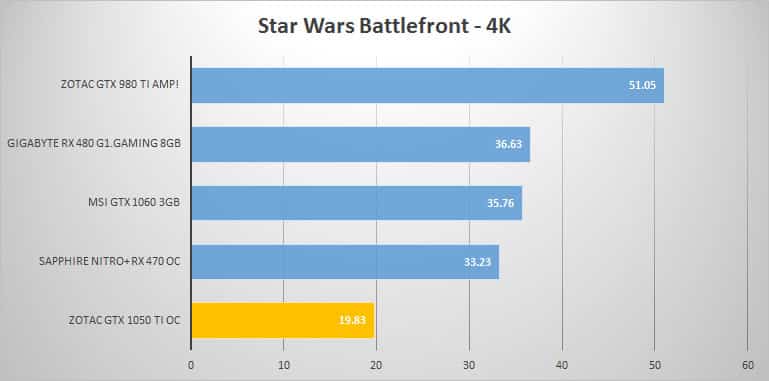

Star Wars Battlefront
In Star Wars Battlefront we used the “Ultra” preset. Going into the Missions -> Battles, we played the Battle on Hoth mission in single player mode. Each time we played as the rebels and recorded a 60 second run in FRAPS.

starwars-4k

FarCry 4
In FarCry 4 there is no built in benchmark so we used Fraps to record our framerates. We play a selection of the “Propaganda Machine” mission where we leave the base camp and run up to the radio tower. We take the same path each time. Graphics were set on the “Very High” preset.

farcry4-4k

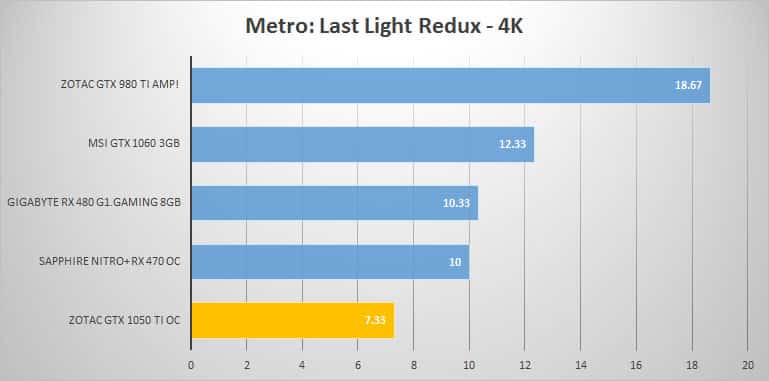

Metro Last Light Redux
Metro Last Light Redux has its own benchmarking tool. Settings we used were Quality: Very High, SSAA: On, Texture Filtering: AF 16X, Motion Blur: Normal, Tesselation: Very High, VSync: Off, Advanced Physx: Off. Scene 1 was selected and the number of runs was set at 3.

metro-4k

Bob Buskirk
the authorBob Buskirk
About 10 years of computer experience. Been messing around with electronics since I was 5, got into computers when I was in highschool, been modding them ever since then. Very interested in how things work and their design.
  • alex

    Great review for this small card! I’m wondering if the shroud and fans are removed, will this gpu fit single slot pcie? The fans from the case would be approximately 5 cm from the exposed radiator grill, blowing air in, directly to the grill… In need to fit a small pcie x1 in the slot next to this gpu, and a 2 slot gpu would block that pcie slot

  • Owen Walker

    After putting it in a single slot in my 1u chassis the cooler is still larger than a single slot. It’s probably around 1 1/2 slot size.

  • alex

    thanks for sharing Owen… i ended up buying the card and using it in first slot, closest to the cpu, then i used a 1x pcie extension cable to install my usb card…

  • Game craze

    hey i just wanted to know whether it can run GTA V Doom Witcher3 or atleast which year’s games

  • alex

    the card is very capable for medium-highish settings. plenty of youtube videos about this card. worth to check some, to make proper idea
