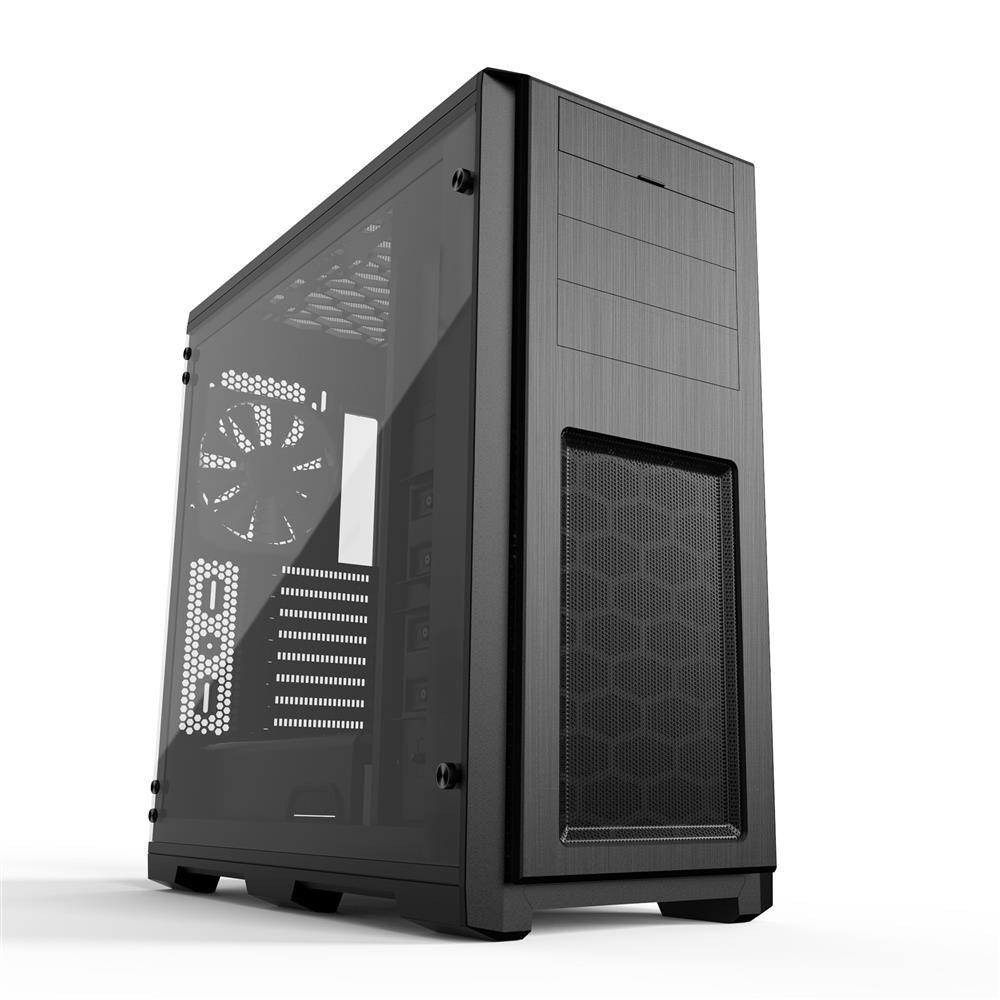

Phanteks Enthoo Pro Tempered Glass Case Review

With high performance and flexibility as the pillars of the Enthoo Pro’s design, it was only natural for Phanteks to evolve the case’s design by adding a tempered glass side panel. Taking a design that allows for lots of airflow and liquid cooling options, without a premium price, Phanteks’ inclusion of a hinged TG side panel just makes sense. Follow us as we take a look at the Phanteks Enthoo Pro Tempered Glass Case.

Special thanks to Phanteks for providing us with the Enthoo Pro Tempered Glass review sample!

Specifications

Case
Dimensions: 235mm x 535mm x 550mm / 9.25in x 21.1in x 21.7in (W x H x D)
Form Factor: Full Tower
Materials: Steel, Plastic, Tempered Glass
Motherboard Support: E-ATX, ATX, Micro ATX, Mini ITX, SSI EEB
Front I/O: 2 x USB 3.0, 2 x USB 2.0, Mic, Headphone, Reset, LED control
Side Window: Yes, Tempered Glass
Color: Satin Black
Warranty: 5 Years

Expansion and Drive Bays
5.25″ ODD Bays: 3
Expansion Slots: 8
2.5″/3.5″ Bays: 6
Dedicated 2.5″ Bays: 4 (2 trays included)

Air Cooling
Front: 120mm fan x 2, 140mm fan x 2 (1 included), 200mm fan x 1
Top: 120mm fan x 3, 140mm fan x 3x 200mm fan x 1
Rear: 120mm fan x 1, 140mm fan x 1 (1 included)
Bottom: 120mm fan x 2, 140mm fan x 1
HDD Cage: 120mm fan x 2

Liquid Cooling
Front: 120mm radiator – up to 240mm, 140mm radiator – up to 140mm
Top: 120mm radiator – up to 360mm, 140mm radiator – up to 420mm
Rear: 120mm radiator – up to 120mm
Bottom: 120mm radiator – up to 240mm, 140mm radiator – up to 140mm

Clearance
Graphics Card: 347mm/13.6in, 472mm/18.5in without HDD cages
CPU Cooler: 193mm/7.6in
Cable Management: 27mm/1.06in, 39mm/1.5in at PSU area
PSU (including cable): 318mm/12.5in
Radiator Clearance: 65mm/2.55in to motherboard

Packaging

In a more robust packaging setup than many other cases come to us in, our sample of the Enthoo Pro TG came packaged nicely in a dual-box configuration. This setup not only used a standard cardboard box that contains the case and foam pads to keep it in place during transport, but it also included a larger, form-fitting exterior box to add a bit more protection to the case. With the boxes opened up we were presented with your standard foam protection for the Enthoo Pro TG.

Accessories

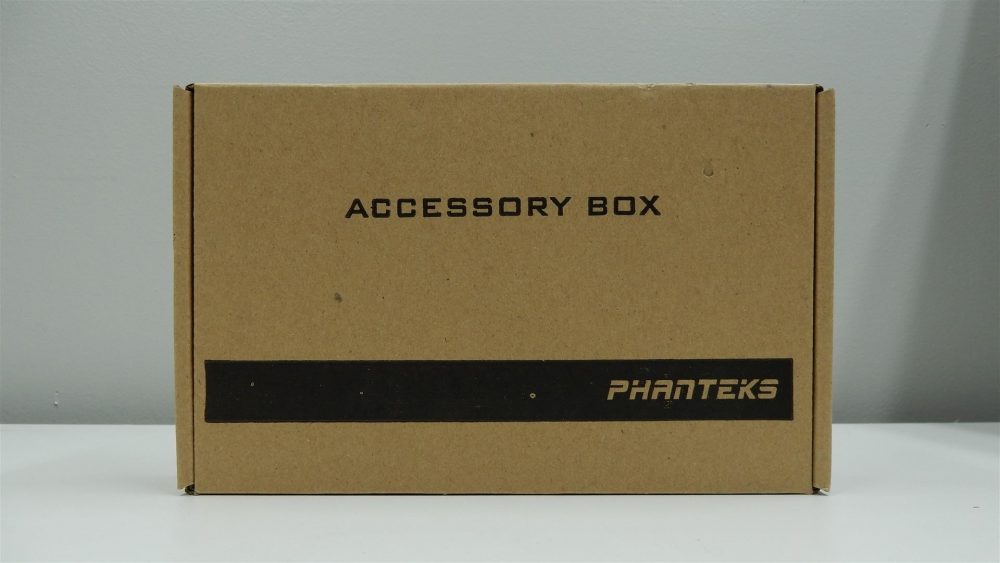

Phanteks has been known to provide a robust accessories kit with their cases, and this time was no exception. A single box housed everything during shipping, and included the very detailed user manual, along with various Velcro straps and zip ties. Also included is a reservoir bracket for those buyers that need a way to mount their liquid cooling reserves.

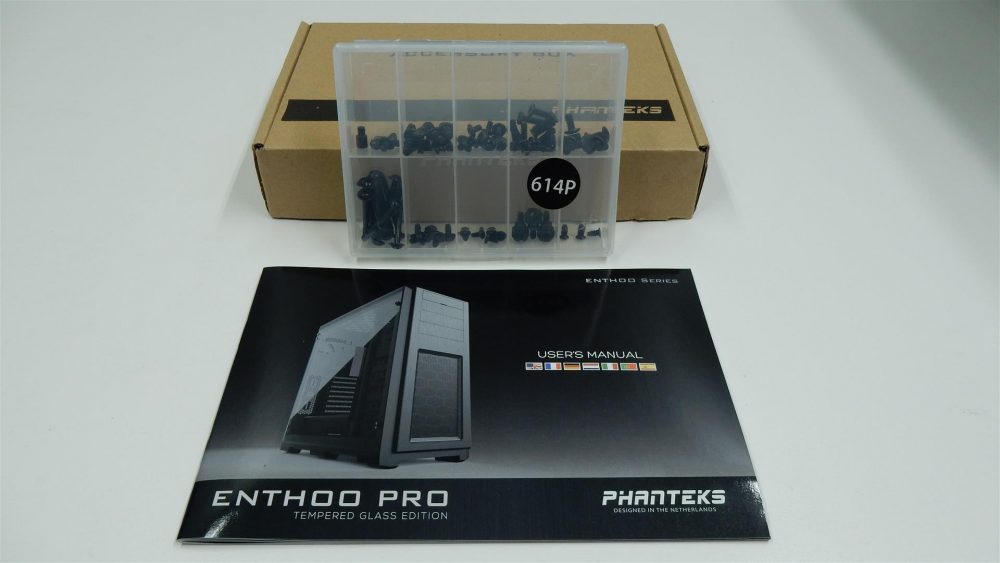

Also included is the very nice parts box for all of the extra screws and accessories that you might need when configuring your build.
