Patriot Hellfire PCIe M.2 Solid State Drive Review

Testing – HDTune Pro & ATTO
Keep in mind for testing the advertised speeds for this drive are 3000 MB/s read and 2400 MB/s write.

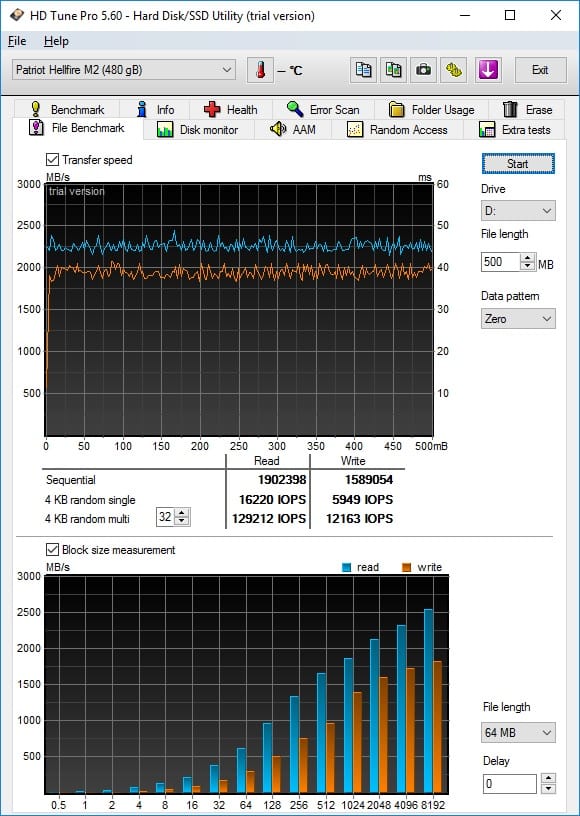

HD Tune Pro is one of the most popular hard drive software suites available. It has many different benchmarks and tests built into it. The benchmark that we mainly focus on is the file benchmark. It has two separate tests. The first tests a file size (500MB for our test) and gives you sequential read and write speeds. It also gives you IOPS for 4KB random single and 4K random multi. The second test in the File Benchmark is a file transfer test with different sized files.

hdtune

Here we can see some good results, but the read speed definitely falls short of the advertised speeds.

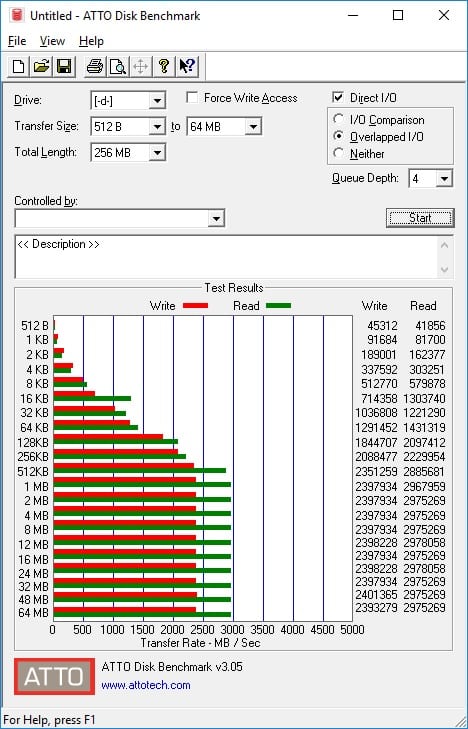

ATTO Disk Benchmark also measures transfer rates across specific lengths. ATTO uses RAW data, our transfer sizes ranged from 0.5 to 8192kb. ATTO is usually our definitive benchmark for solid state drives.

atto

Here we can see the drive performs right up to its advertised speeds.
