NZXT H700i Case Review

NZXT is a company which has always innovated when it came to their cases. I’ve always felt like their cases were made for builders as they’ve always had features that builders and modders wanted. It has been a while since we’ve seen a new high-end case from NZXT. Well they have recently released their new H-Series cases, which are made up of the H700i, H400i, and H200i. These are ATX, Micro-ATX, and Mini-ITX cases respectively. NZXT tells us these are “Smart” cases with built-in RGB lighting and fans which you can control via NZXT’s very popular CAM software. Of course this is all connected for you from the get go, and you have adaptive noise reduction which should help your system stay quiet, even during intense gaming sessions. Of course you have a nice tempered glass side panel to show off your hardware, and some very interesting cable management features. Is this the next case for you? Read on as we find out!

Special thanks to NZXT for providing us with H700i Case to review.

Specifications
Dimensions: W: 230mm H: 516mm D: 494mm (with feet)
Material(s): SECC Steel and Tempered Glass
Weight: 12.27 kg
Motherboard Support: Mini-ITX, MicroATX, ATX and EATX(Up to 272mm or 10.7-inches)
I/O Ports:
– 2 x USB 2.0
– 2 x USB 3.1 Gen 1
– 1 x Audio/Mic
Filters: Front and PSU Intake
Smart Device:
– 3 x Fan channels with Max 10W per channel output*
– 1 x RGB LED port support up to 4 x HUE+ LED strips or 5 x Aer RGB fans
– Built-in noise detection module
Expansion Slots: 7
Drive Bays:
– 2.5”: 7
– 3.5”: 2+1
Radiator Support:
– Front: 2 x 140 or 3 x 120mm with Push/Pull
– Top: 2 x 140 or 3 x 120
Fan Support:
– Front: 3 x 120/2 x 140mm (3 Aer F120 Case Version included)
– Top: 3 x 120/2 x 140mm
– Rear: 1 x 120/1 x 140mm (1 Aer F140 Case Version included)
Fan Specs: Aer F120 (Case Version)
– Speed: 1200 + 200 RPM
– Airflow: 50.42
– CFM Noise: 28 dBA
– Bearing: Rifle Bearing
Aer F140 (Case Version)
– Speed: 1,000 + 200 RPM
– Airflow: 68.95 CFM
– Noise: 29 dBA
– Bearing: Rifle Bearing
Clearance:
– Cable Management: 18-22mm
– GPU Clearance: Up to 413mm
– CPU Cooler: Up to 185mm
– Front Radiator: 60mm
– Top Radiator: 30mm
– Reservoir & Pump: Up to 224mm (Along cable bar)
Warranty: 2 Years
Model Number: CA-H700W-WB

Packaging

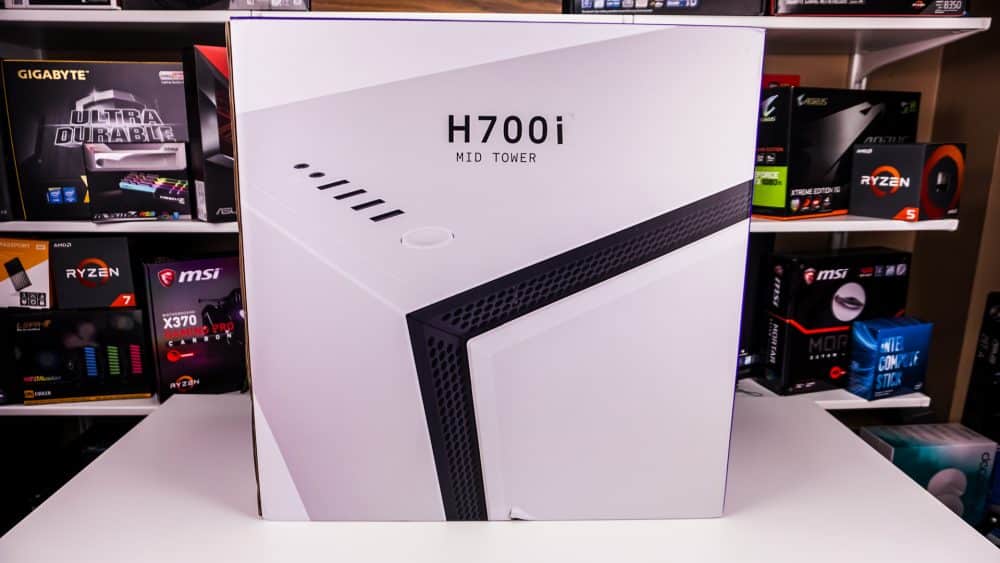

The H700i comes in a large box. On one side you just have a picture of the top corner of the case and it says “H700i Mid Tower”.

NZXT H700i

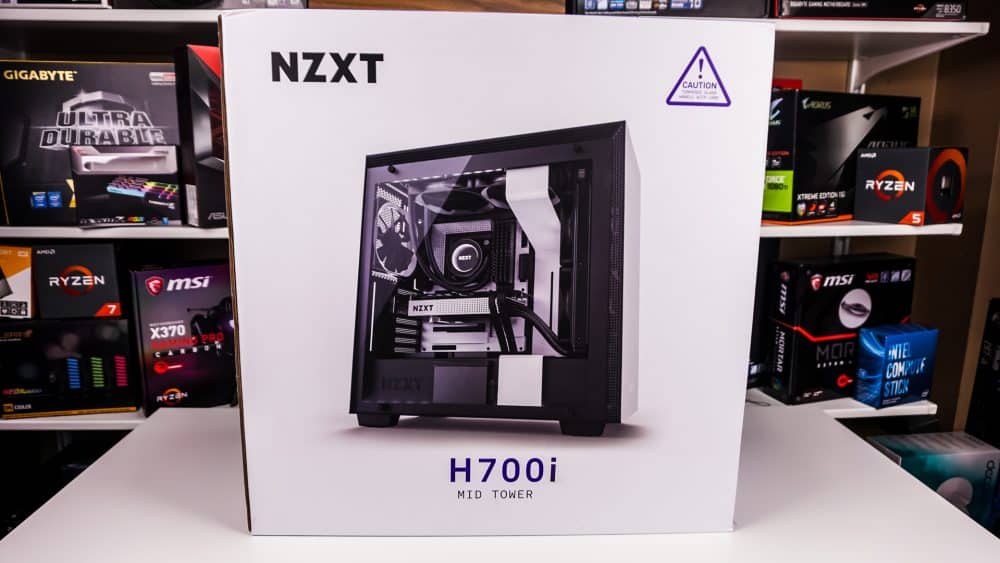

On the opposite side there is a picture of the case with a system installed.

NZXT H700i

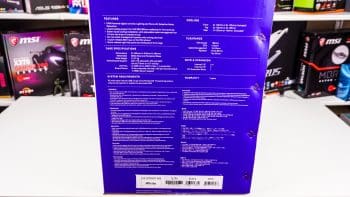

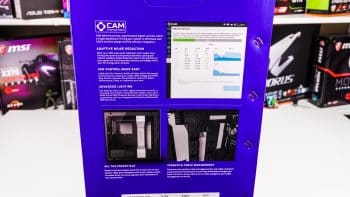

On the other two sides there is a list of features and specifications, as well as information on NZXT CAM and some of the main features of the case itself.

NZXT H700i NZXT H700i

Opening the box up inside we find the case nicely protected by two large pieces of Styrofoam and a plastic bag. This is also a plastic film on the tempered glass side panel for even more protection.

NZXT H700i NZXT H700i

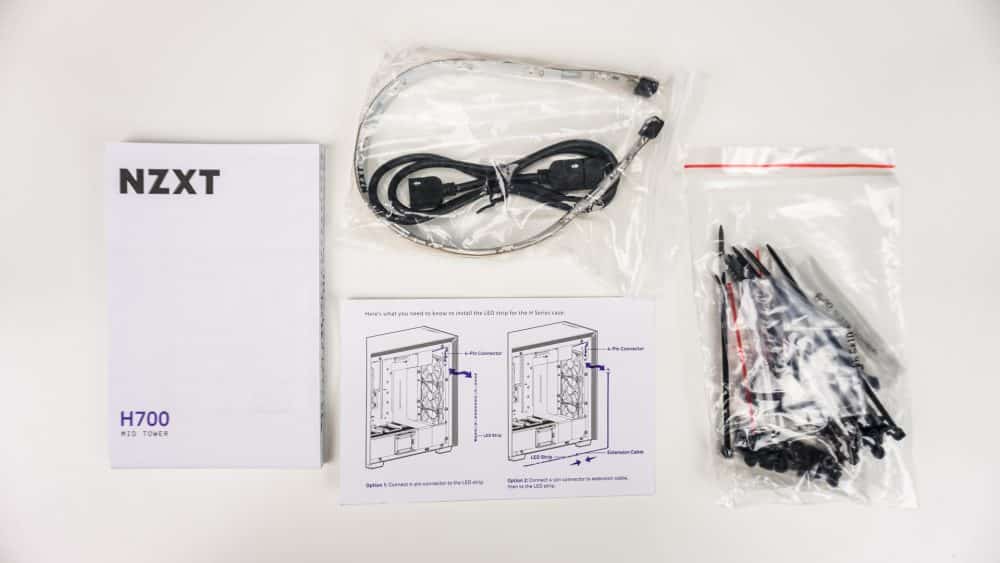

Inside you will find a box of goodies that include an RGB LED strip, screws and zip ties, and a user’s guide.

NZXT H700i
