Cooler Master Silent Pro M2 1500W Power Supply Review

Cooler Master is well-known for their cases and CPU coolers, but they also offer some very high quality power supplies.  We have taken a look at their Silent Pro Hybrid and Silent Pro Gold units in the past and today we are taking a look at the newer Silent Pro M2 series.  The Silent Pro M2 series is very popular with units ranging from 420W all the way up to 1500W.  Today we are looking at the highest wattage Silent Pro M2, the 1500W.  It features a dual 12V rail design, 135mm durable hydraulic dynamic bearing fan, a 80PLUS Silver efficiency rating, modular cables, and a 5 year warranty.  Read on as we put this power supply to the test!

Special thanks to Cooler Master for providing us with the Silent Pro M2 1500W Power Supply to review.

Specifications

Model RSF00-SPM2D3-US; RS-F00-SPM2
Type ATX 12V V2.3
Dimension 150 x 220 x 86mm (5.9 x 8.6 x 3.4 inch)
Input Voltage 90-264Vac (Auto Range)
Input Current 18 – 9A
Input Frequency Range 47 – 63Hz
PFC Active PFC (>0.9)
Power Good Signal 100-500ms
Hold Up Time >17ms
Efficiency 88% Typically
MTBF 100,000 Hours
Protection OVP/UVP/OCP/OPP/OTP/SCP
Output Capacity 1500W
Operation Temperature 0-40°C(Nominal Input Voltage)
Certification TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC
Fan Silent HDB 135mm
Connector M/B 24 Pin Connector x 1
CPU 8 Pin x 2
PCI-E 8 Pin x 6
PCI-E 6+2 Pin x 6
SATA x 12
4 Pin Peripheral x 5
4 Pin Floppy x 1
Warranty 5 years

Packaging
The Silent Pro M2 1500W power supply comes in a very nice retail package.  On the front are some of the main features including the 80PLUS Silver certification and 5 year warranty.  On the back there are some specifications listed as well as graphs for the fan curve and efficiency curve.

Cooler Master Silent Pro M2 1500W Power Supply Cooler Master Silent Pro M2 1500W Power Supply

On the side of the box is a full listing of specifications and input / output figures.

Cooler Master Silent Pro M2 1500W Power Supply

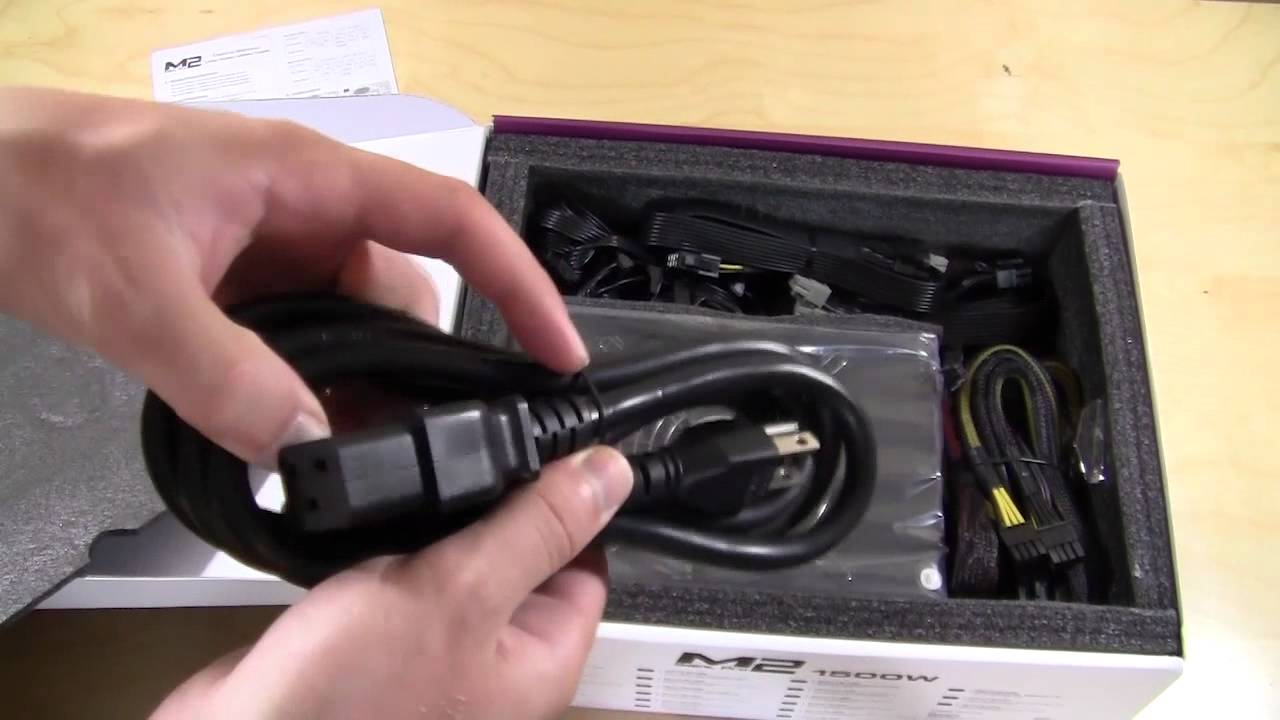

Opening the box up everything is nicely packed inside.  Getting it all out your have the Silent Pro M2 1500W power supply, modular cables, power cable, mounting screws and instructions.  I was surprised that there was no carrying bag included for the modular cables.

Cooler Master Silent Pro M2 1500W Power Supply Cooler Master Silent Pro M2 1500W Power Supply

To give you a good idea of how the Silent Pro M2 comes and for a brief overview check out our video below.
