Cooler Master HAF XM Mid Tower Case Review

Cooler Master’s HAF X full tower case was released about 2 years ago and since then it has been their premier full tower case.  While full tower cases are great many people do not want a case that large or may not have room for it.  For those who love all of the features of the HAF X Cooler Master has just released the HAF XM, which they say is “the essence of a HAF X distilled into its purest form; a mid-tower enclosure”.  This mid tower case features support for up to four 200mm fans, a latched side panel, two external hot swap X-Docks, 3-way SLI or CrossFire support and dust filters on every intake!  Let’s jump right in and take a look!

Special thanks to Cooler Master for providing us with the HAF XM Mid Tower Case to review.

Available Color: Black
– Outer body: coated steel mesh and Synthetic compounds;
– Inner body: coated enforced steel alloy
Dimensions: 252.0(W) x 530.5(H) x 579.0(D)mm / 9.9 x 20.9 x 22.8 inch
Weight: 10.5 kg / 23.1 lb
M/B Type: Micro-ATX, ATX, E-ATX
5.25″ Drive Bays: 3
3.5″ Drive Bays: 8 (hidden x 6, X-Dock x 2)
2.5″ Drive Bays: 9 (6 are converted from 3.5“ bays, X-Dock x 2, 1 is behind M/B tray)
I/O Panel: USB 3.0 x 2 (int.), USB 2.0 x 2, Audio In & Out x 1 (supports HD Audio), LED switch for the front fan
Expansion Slots: 8+1
Cooling System:
– Front: 200mm Red LED fan x 1 (converted to 120mm fan x 2 / 140mm fan x 1)
– Top: 200mm fan x 2 (one is optional; converted to 120/140mm fan x 2)
– Rear: 140mm fan x 1 (converted to 120mm fan x 1)
– Side: 200mm fan x 1 (optional; converted to 140mm fan x 2)
– HDD: 120 x 25mm fan x 2 (optional)
Power Supply Type: Standard ATX PS2 / EPS
VGA card length: 354.0mm / 13.9 inch (with HDD cage) 463.0mm / 18.2 inch (without HDD cage) (*AMD Radeon HD 6990: 304.8mm / 11.9”; NVIDIA GTX 590: 279.4mm / 10.9”)
CPU cooler height: 196.0mm / 7.7 inch (*Can accommodate Cooler Master CPU cooler <TPC 812>: 163.0mm / 6.4”)

The Cooler Master MAF XM comes in a nice retail package.  On the front there is a photo of the case.  On the back there is an overview of the entire case highlighting many of its features.

Cooler Master HAF XM Mid Tower Case Review Cooler Master HAF XM Mid Tower Case Review

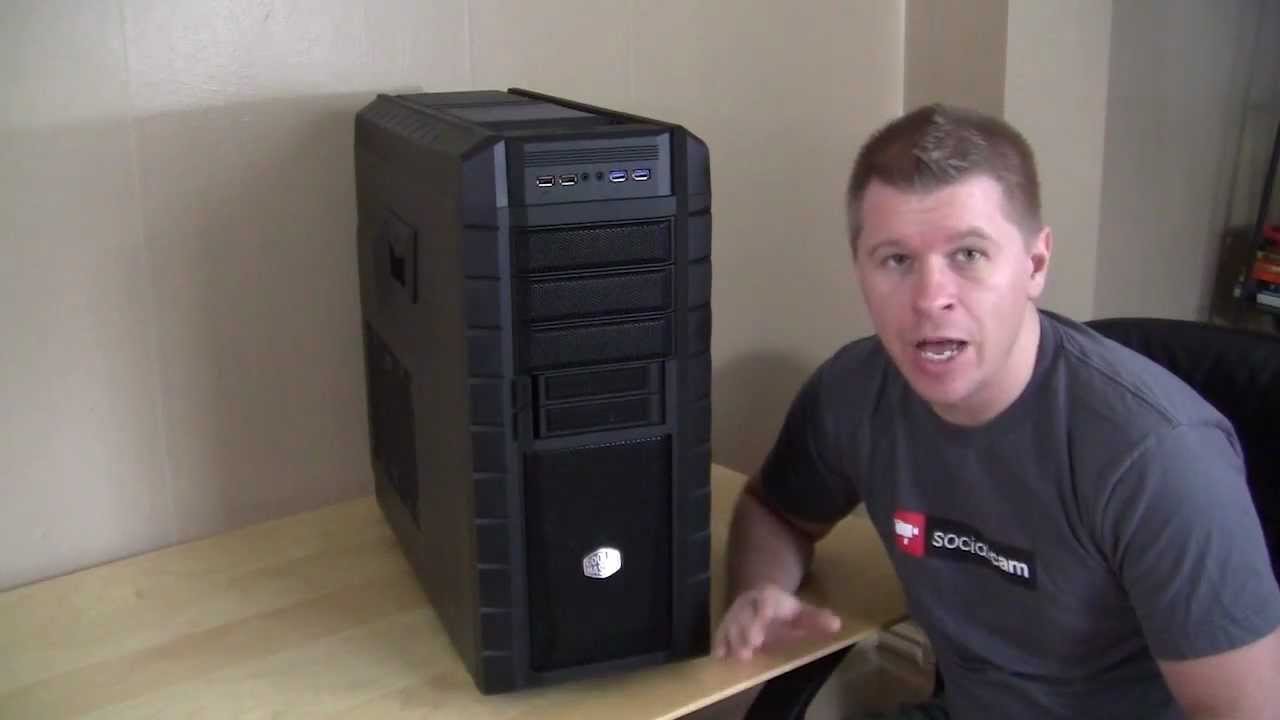

To give you a good idea of how the HAF XM comes and for a brief overview of the case check out our video below.
