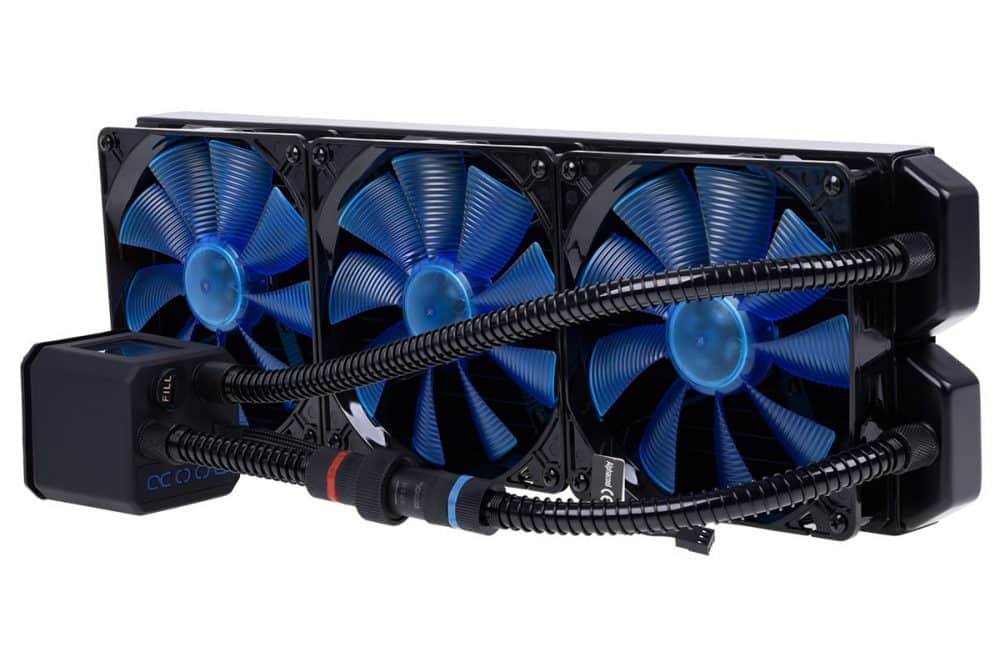

Alphacool Announces the Eisbaer 420 – The World’s Biggest AIO solution

The Alphacool Eisbaer is an expandable, refillable CPU all-in-one watercooler with a pure copper radiator. The Eisbaer can be expanded with additional Eisbaer Ready products such as the Eiswolf GPX-Pro graphics card cooler, among others.

With the Eisbaer 420mm, Alphacool presents what is currently the largest and most powerful AIO water cooler in the world. With its mighty 420mm pure copper radiator and three 140mm Eiswind fans, the ability to cool any current CPU is more than just guaranteed. The quick connectors mean you can add any Eisbaer Ready products or custom water cooling gear to the cooling loop. The cooling performance of the mighty 420mm pure copper radiator is enough to add more than one graphics card to the loop, or any other components that will be cooled with water. The 420mm pure copper radiator and the included Eiswind fans can easily provide the necessary cooling power.

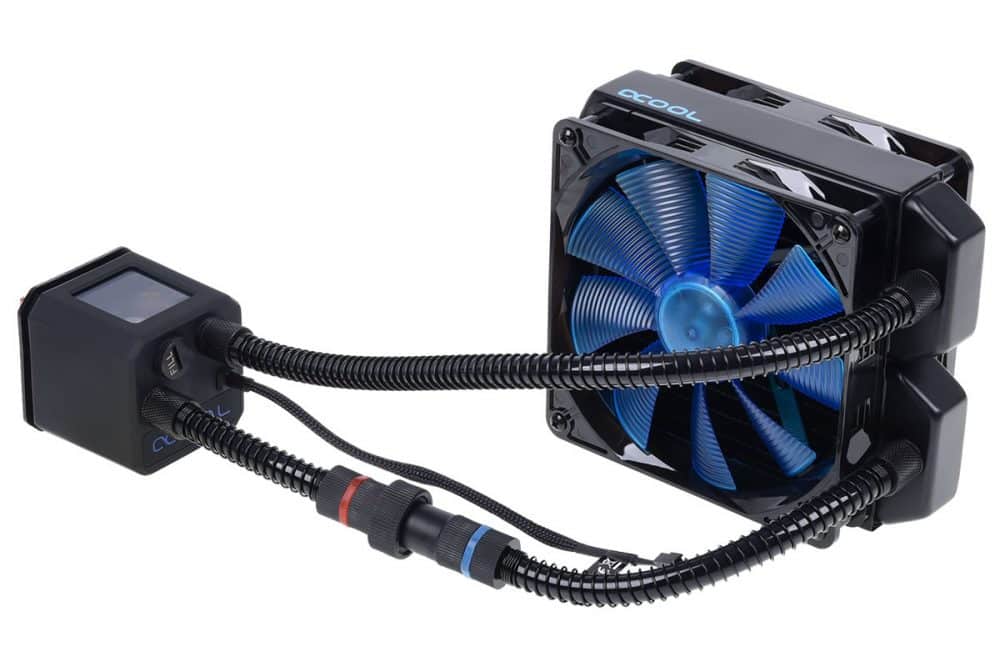

In order to round out the lower end of the product palette, Alphacool is also offering the Eisbaer 140mm. It perfectly closes the performance gap between the 120 and 240mm models. It uses the same quiet-but-strong pump – the DC-LT Ultra Low Noise Ceramic pump.

Highlights
– Prefilled watercooler for your CPU
– Quick connectors make it easy to expand and upgrade with Eisbaer Ready
– Pure copper radiator for maximum cooling performance
– DC-LT Ultra Low Noise ceramic pump for whisper-quiet operation
– Refillable via the fill port on the reservoir.

Radiator
Alphacool relies on a radiator made of full copper. The base of the radiator is the popular Alphacool NexXxoS series, which is extremely popular worldwide. The pure copper construction enormously increases the cooling performance compared to the conventional aluminum radiators of classic AIOs. The low fineness ensures an enormous cooling performance for low-speed fans. As a result, the performance of the Eisbaer in the down-regulation of the fans is much slower than with radiators with high fineness.

Hoses
The flexible PVC hoses facilitate the installation of the ice packers. This allows the hoses to be laid more easily and placed in the right position. In order to prevent them from bending and thus the flow of the water being stopped, kinking springs are found on both hoses. The size 11 / 8mm also comes from the normal water cooling range and is here beside 13/10 and 16/10 a common size.

Quick release fasteners
The Eisbear has been designed on expandability. Therefore, you can find a quick-release fastener on one of the hoses. This quick release is compatible with the Alphacool HF quick-release fasteners (1010383, 1010394, 1010395, 1010442), which allows you to easily expand the circuit by a radiator with a graphics card cooler.
Furthermore, the Eisbaer is compatible with the upcoming Alphacool GPX-Pro graphics cards AIO which will use identical quick-release fasteners.

Fans
The ice-wind fans have been specially developed for radiators and create a high static pressure to push cool air between the cooling fans. Both fans run permanently with 1100U / min. A PWM Y adapter is attached to the ice bucket, so both fans can be controlled via a PWM connection on their mainboard or a separate fan control.

Connections
All connections are based on the classic G1 / 4 inch thread. The standard thread in water cooling. Therefore all connections can be changed at any time. This also means that they can later, for example, rely on thicker hoses or even hardtubes to make their system more individual.

All these features make the Eisbaer cooler something special. The upgraded optics by the illuminated logo and the illuminated compensating container in which the pump is located, let the interior of each PC shine in new brilliancy. The softtouch surface of the pump housing is another optical highlight.
With the Eisbaer you get a perfect allround product which is not only extremely powerful but also very quiet.

Pumps
The basis of the pump is the Alphacool DC-LT Ceramic Ultra Low Noise, which is also available separately. The pump runs extremely quietly and can be controlled from 7 to 12V. It is also possible to control the mainboard. Who runs the Eisbaer alone, will hardly have a loss of performance on 7V as various test results can testify. Thanks to the insulated pump housing, the sound development is further perfected and also ensures that vibrations are almost completely intercepted.

The bare and smooth polished copper bottom of the cooler also ensures optimum heat absorption and can transfer this quickly and efficiently to the water via the fine cross-slot structure of the cooler.

Technical specifications

Pump (Alphacool DC-LT 2600 Ultra Low Noise Ceramic)

  • Speed: 2600 rpm
  • Voltage: 7 – 13.5VDC
  • Power consumption: 4W
  • Maximum flow: 70L / h
  • Max. Lifting height: 0,85m

Fan (ice wind 14)

  • Stock: Sleeve Bearing
  • Power: 12V
  • Power connection: 3-pin
  • Rated rotational speed: 1100 (+/- 10%)
  • Air conveying capacity: 62.31 cfm / 106m³ / h
  • Static pressure: 1.55 mmH2O
  • Volume: 29.4 dB (A)

Box Contents

  • 1x Alphacool Eisbaer 420 CPU – Black
  • 3x ice wind fan
  • 1x Intel Backplate
  • 1x Intel bracket
  • 1x AMD bracket
  • PWM adapter
  • mounting material
  • 1x thermal grease
