Patriot Hellfire PCIe M.2 Solid State Drive Review

Testing – CrystalDiskMark & AS SSD
CrystalDiskMark is our next test and it has a sequential read / write test as well as a 512k and 4k random read / write test. We run this test at its normal settings and then at 0Fill.

crystal1 crystal2

Now if we look at these results, during the 0Fill test we can see the drive performs better, especially during writes.

AS SSD Benchmark is next. This benchmark contains four synthetic as well as three practice tests. The main benchmark will give you scores in MB/s as well as IOPS.

as ssd 1 as ssd 2

Again, we can see low write speeds here.

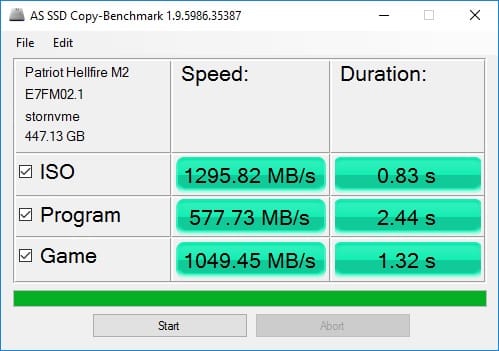

The AS SSD Copy Benchmark gives you the speed and time it would take to load an ISO, Program and Game.

as ssd 3

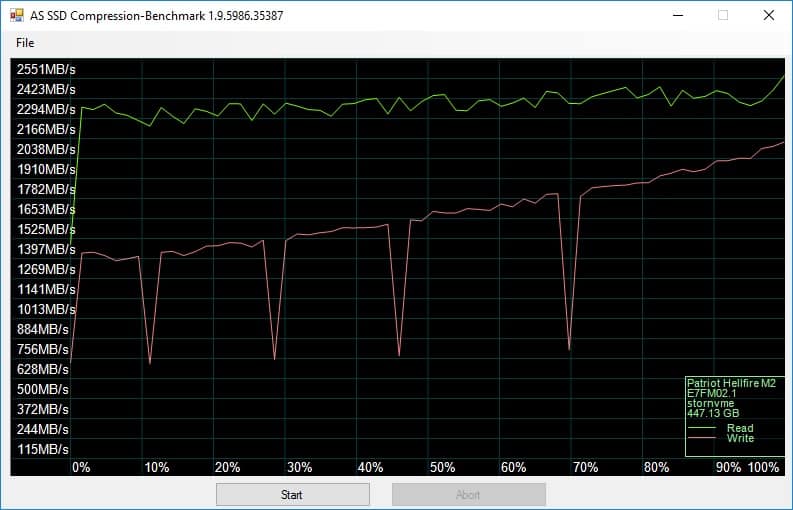

Finally we have the AS SSD Compression benchmark.

as ssd 4
