OCZ RevoDrive 350 480GB PCI-E Solid State Drive Review

System Overview & Testing Procedures

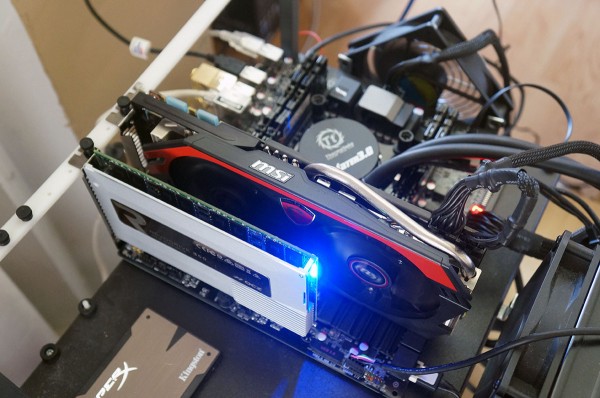

Unlike typical solid state drives that you plug into a SATA connection we will be installing this drive in an open PCI-Express connector. Make sure you are connecting it to a x8 connection for maximum bandwidth. Once you have the drive connected and you go into Windows you will need to install the drives for Windows to see the drive. Here is the drive installed in our test bench.

OCZ RevoDrive 350

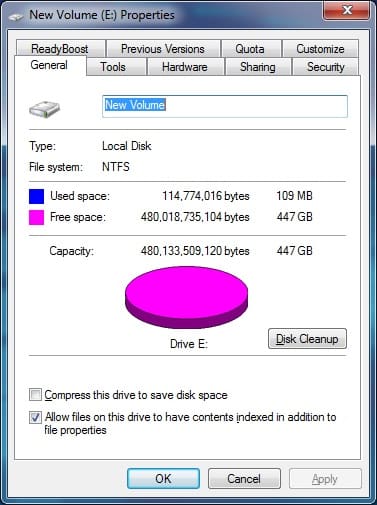

Once formatted in Windows we can see that the drive has 447 GB of usable space.

info2

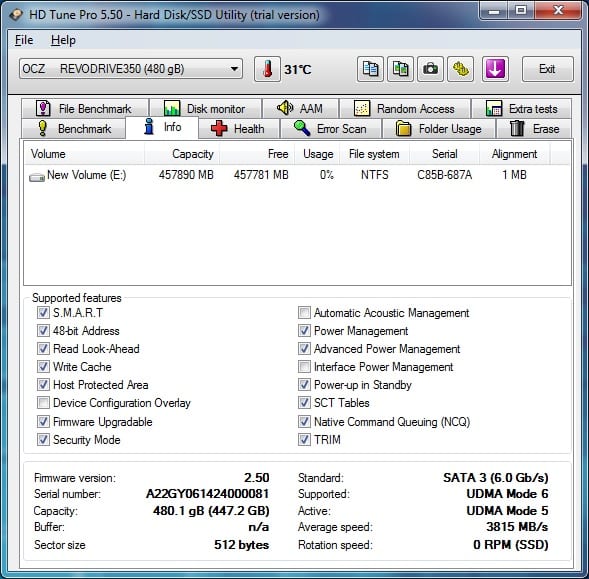

If we open HD Tune Pro and look under the info tab we can see all of the information on the drive. It supports S.M.A.R.T., NCQ and most importantly TRIM.

info1

For testing the drive we will be using the following benchmarking programs, we have provided links to each so you can run the benchmarks on your drive for comparison.

HDTune Pro (download)
ATTO Disk Benchmark (download)
CrystalDiskMark 64bit (download)
AS SSD Benchmark (download)
Anvil Storage Utility Professional (download)
PCMark Vantage – HDD Suite (download)

We also made these optimization changes…

– No power saving options in the BIOS
– ACHI enabled in the BIOS
– Windows 7 User Account Control (UAC) is disabled
– Windows 7 power saving settings are disabled

Let’s get to testing!
