NZXT HALE82 V2 Overview
NZXT has opted to go with white for this power supply. This will match many of NZXT’s white cases. For those wondering the actual dimensions of the unit are 160mm x 150mm x 86mm so it should fit in most systems.

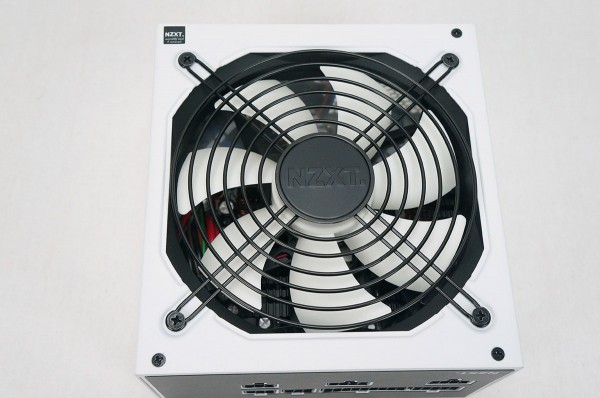

On the bottom of the unit you will find a 135 mm silent fan. This fan is covered with a black fan grill that has the NZXT logo on it.

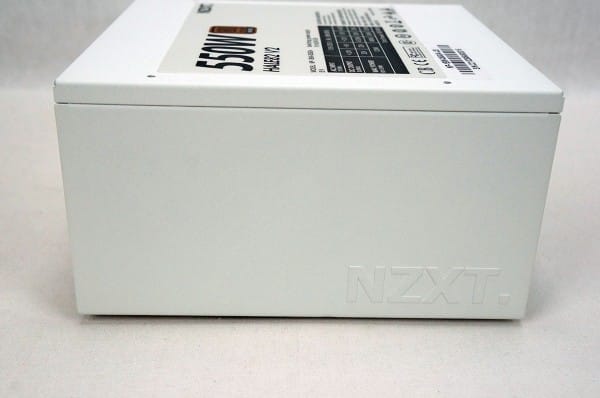

Each side of the unit has the NZXT logo on it. So which ever way you have the unit mounted you will be able to see the NZXT logo. This unit is 80PLUS Bronze certified which means it will be 85% efficient at 50% load and 82% efficient at 100% load.

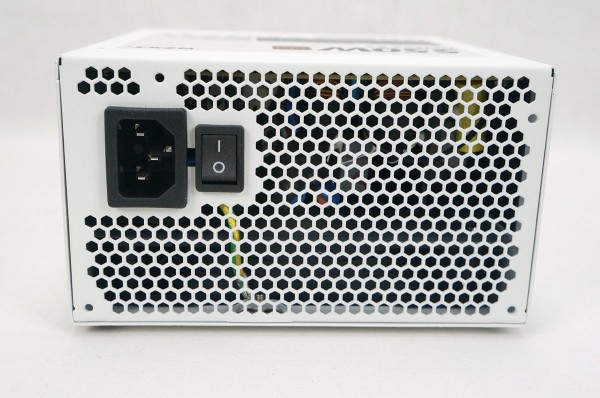

The back of the unit has a honeycomb design which will help with cooling. Here is also where you will find the power connection and power button.

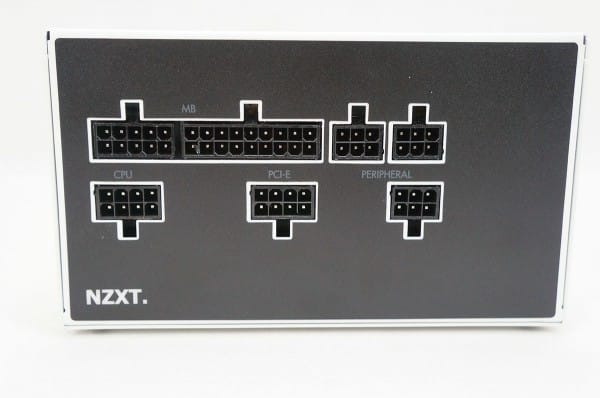

This unit is 100% modular and on the front is where you will find all of the modular connections. They are all labeled so you know where to connect the included cables.

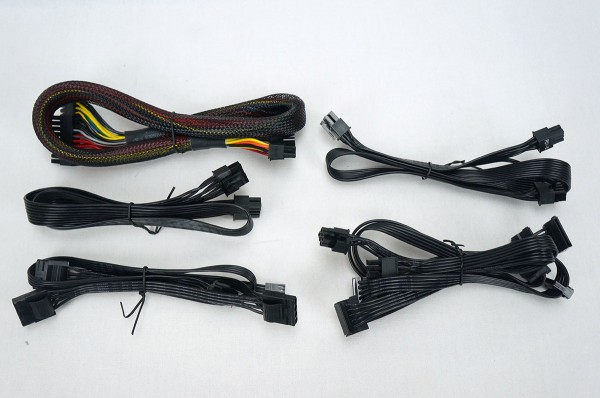

Talking about the modular cables, all of the cables except the 24pin ATX power connector use a flat cable design. This design makes it pretty easy to keep all of your cables organized. The 550W version of this power supply offers you 1x 24pin ATX power connector, 1x 4+4pin CPU power connector, 2x 6+2pin PCI-Express connectors, 6x SATA connectors, 3x molex connectors and a single floppy connector.
